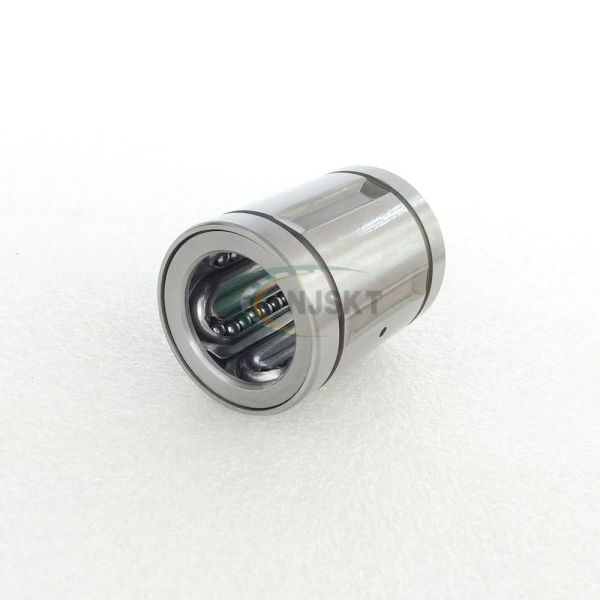

Cold Press Forming SDM6GA Linear Bearing 6mm Linear Ball Bearing

The SDM6GA Linear Ball Bearing utilizes advanced cold press forming technology to deliver exceptional precision and durability in 6mm motion systems. This manufacturing process enhances the bearing's structural integrity by aligning the material grain structure while maintaining tight dimensional tolerances critical for smooth linear movement. The cold-formed construction produces a stronger, more uniform component compared to conventional machining methods, with improved resistance to wear and deformation under load. This technique allows for precise control over the bearing's internal geometry, ensuring optimal ball recirculation and consistent performance throughout its service life. The process creates a seamless housing that minimizes vibration and maintains alignment accuracy even in high-speed applications. Cold press forming also contributes to the bearing's excellent surface finish, reducing friction and promoting efficient motion in precision equipment. Particularly suitable for automation systems, optical devices, and small-scale machinery, this bearing demonstrates how specialized forming techniques can enhance the performance of compact linear components. The manufacturing method ensures reliable operation with minimal maintenance requirements, making it a practical choice for applications where both precision and longevity are essential. This bearing represents an effective solution for engineers seeking high-quality 6mm linear motion components that benefit from the advantages of advanced cold forming technology.

② Features of linear bearings

1.The linear ball bearing comprises an outer race, a retainer, balls, and end rings. The retainer, housed within the outer race, features three or more rows of elliptical ball tracks that enable continuous ball circulation with minimal friction. The end rings secure the retainer at both ends of the outer race.

2.One side of the parallel straight sections of the elliptical ball tracks is open, allowing the balls to contact the shaft surface. This design permits unlimited back-and-forth ball movement along the tracks in response to the shaft’s linear reciprocating motion. Consequently, the retainer not only guides the rolling motion but also prevents ball displacement when the bearing is disengaged from the shaft.
