BSHR02005 Precision Lead Screw 20mm Diameter For Linear Stepper Motor

Brand Name : TBI

Model Number : BSHR02005-3

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 1

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : BSHR

Diameter : 20mm

Lead(mm） : 5mm

Accuracy Grade : C3,C5,C7

Overall Length of shaft(mm) : Max 4000mm

Preload Grade : P0

Material : Screw: S55C Nut: SCM415H Ball: SUJ2

Threading Direction : right

Flange type : double cutting

Proudct code : F: rolled

Application : delicate application in industrial application, machine tool and automation application

Installation : Easy

Contact Now

①TBI Ball Screw BSHR02005 20mm Diameter Ball Screw Linear Stepper Motor

The TBI Ball Screw BSHR02005 offers a robust linear motion solution specifically engineered for seamless integration with stepper motor systems, combining a substantial 20mm diameter screw with precise positioning capabilities for industrial automation applications. This high-performance component bridges the gap between rotary motor output and precise linear movement, delivering smooth motion transfer with minimal energy loss. Designed to handle the dynamic requirements of automated equipment, the screw maintains exceptional alignment stability during rapid start-stop cycles while providing the rigidity needed for accurate positioning. TBI's precision manufacturing ensures optimal ball recirculation that reduces friction and wear, extending service life even in demanding continuous operation environments. The balanced design accommodates both the incremental motion characteristics of stepper systems and the smooth velocity transitions required for quality automation performance. Engineers will appreciate the screw's ability to maintain positional integrity under load, making it particularly valuable for applications such as automated assembly lines, material handling systems, and precision manufacturing equipment. The BSHR02005 demonstrates TBI's commitment to creating motion solutions that enhance system reliability while simplifying mechanical design, offering a dependable interface between stepper motor technology and linear motion requirements. Its combination of durable construction and refined motion characteristics provides machine builders with a trusted component that delivers consistent performance while withstanding the rigors of industrial environments.

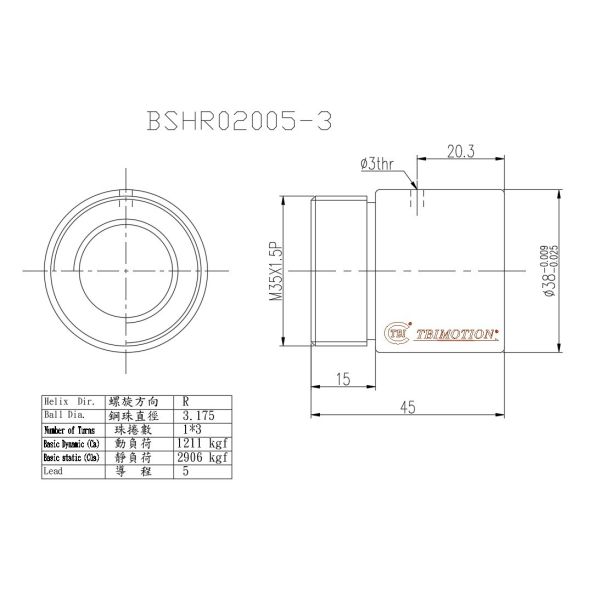

②Drawing of BSHR02005-3

BSHR02005 Precision Lead Screw 20mm Diameter For Linear Stepper Motor

③ModeNumber of ball screw series

④Construction of BSHR Series

⑤Features of Ball Screw-Internal Return Series
Internal return design saves more space.
Small driving torque only one third of ACEM ball screw.
High accuracy guaranteed.
Fine feed, can be controlled within 0.1μm.
No backlash, High rigidity.

customized machined service.NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

⑥Actual product photo

BSHR02005 Precision Lead Screw 20mm Diameter For Linear Stepper Motor

⑦Measurement drawing

⑧TBI series

BSHR02005 Precision Lead Screw 20mm Diameter For Linear Stepper Motor

⑨top product recommendation
