SK10 Linear Shaft Supports 10mm Linear Shaft Supporting Rails

Brand Name : OEM

Model Number : SK10

Certification : DE1924083895474

Place of Origin : CHINA

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Shaft Diameter : 10mm

Shape : T-Shaped

Material : Aluminum Alloy

Shaft Securing Method : Slit

Surface treatment : Clear Anodize

Mounting Hole Type : Through hole

Thickness : Standard

Dowel hole : Not provided

Clamp lever : Not provided

Application : Electronic & Electrical Appliances, Robotics, Automotive

Contact Now

①SK10 Linear Shaft Supports 10mm Linear Shaft Supporting Rails

The SK10 T-Shaped Linear Shaft Support offers an advanced mounting solution for 10mm linear motion systems, featuring a distinctive T-profile that delivers both space efficiency and enhanced mechanical stability. This innovative design combines a vertical support column with a horizontal mounting platform to create a balanced structure that resists torsional forces while optimizing installation flexibility. The T-shaped geometry provides multiple mounting options through its broad base, allowing secure attachment from various angles without compromising the precise alignment of 10mm supporting rails. The configuration's inherent stability proves particularly valuable in applications where conventional round supports lack sufficient resistance to moment loads or require excessive space. The horizontal arm of the T-design distributes clamping forces evenly across the mounting surface, while the vertical stem maintains exacting shaft alignment for smooth linear motion. This thoughtful geometry enables simplified integration in complex automation systems where 10mm rails must interface with multiple components in tight spaces. Engineers will appreciate how the T-shaped profile solves common challenges in motion system design by providing a compact yet rigid foundation that accommodates various installation scenarios. The design's balanced proportions and strategic material distribution make it ideal for precision equipment, robotic arms, and automated machinery where both space constraints and motion accuracy are critical considerations.


② Features of linear shaft supports

Feature 1: Tool-Free Slit Design
The innovative slit design of the shaft supports enables quick, tool-free installation and secure connection to shafts without causing surface damage or compromising structural integrity, ensuring hassle-free assembly and disassembly.

Feature 2: Cost-Efficient Aluminum Extrusion Manufacturing
The economy series shaft supports utilize advanced aluminum extrusion technology, offering a lightweight yet durable solution at a significantly reduced cost. While precision is marginally lower compared to fully machined alternatives, this series maintains sufficient accuracy to meet the functional requirements of most applications, delivering exceptional value for budget-conscious projects.

Feature 3: Fine-Adjustment Through-Hole Tolerance
The precision-engineered clearance in the installation through-hole allows for on-site micro-adjustments, enabling users to achieve optimal shaft alignment and positioning during final assembly. This feature eliminates the need for additional components, streamlining setup in dynamic operational environments.

Feature 4: Standardized Stock Availability
Available in inner diameters ranging from 6mm to 60mm (exact specifications provided in the product catalog), the economy series shaft supports are maintained as standardized stock items. This ensures rapid order fulfillment with same-day shipping capabilities, minimizing downtime and accelerating project timelines for time-sensitive applications.This combination of user-centric design, affordability, adaptability, and rapid availability positions these shaft supports as a versatile solution for both industrial and commercial linear motion systems.

③Specification of SK series Linear Shaft Supports

SK10 Linear Shaft Supports 10mm Linear Shaft Supporting Rails

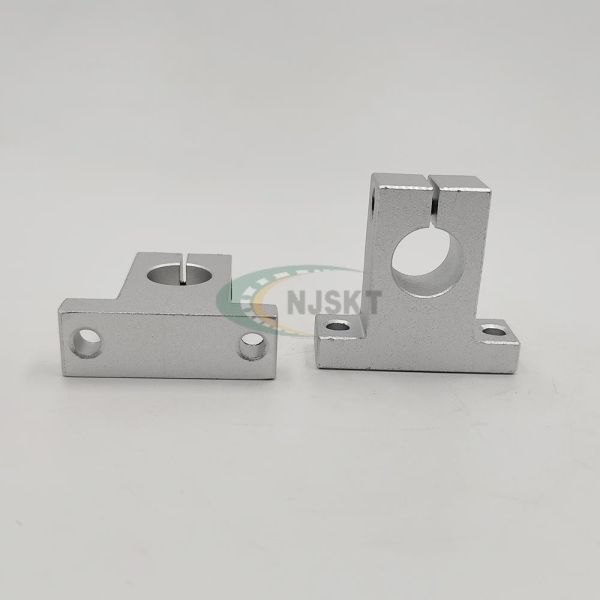

Actual product photo

SK10 Linear Shaft Supports 10mm Linear Shaft Supporting Rails

⑥top product recommendation
SK10 Linear Shaft Supports 10mm Linear Shaft Supporting Rails
