①High Load-Carrying Capacity TBI Ball Spline SLT30 Ball Spline Drive Shaft
The TBI SLT30 ball spline drive shaft sets a new benchmark for heavy-duty performance, engineered to deliver exceptional load-bearing capacity without compromising precision in demanding motion control applications. This robust component features an optimized design that distributes stresses evenly across its reinforced structure, enabling it to withstand substantial radial, axial, and moment loads simultaneously. The precision-ground spline surfaces and advanced ball recirculation system work in perfect harmony to maintain smooth operation even under extreme forces, demonstrating TBI's expertise in creating motion solutions for challenging industrial environments. Specially formulated materials and heat treatment processes enhance the shaft's durability, ensuring consistent performance in high-stress applications such as heavy automation, industrial presses, and large-scale material handling systems. The innovative architecture maximizes contact area while minimizing stress concentrations, allowing the SLT30 to handle demanding workloads that would compromise conventional spline shafts. Designed for reliability in the most rigorous operating conditions, this high-capacity drive shaft maintains precise motion characteristics throughout extended service life, even when subjected to continuous heavy loading. The SLT30 series exemplifies TBI's commitment to pushing the boundaries of motion technology, providing system designers with a premium solution that combines unmatched load capacity with the precision expected from high-performance ball spline systems, making it ideal for applications where both strength and accuracy are non-negotiable requirements.
②Features of TBI Ball Splines
The design of TBI Ball spline is to utilize the friction through the contact of steel balls within in the
Spline Nut and the grooves on the Spline Shaft. With TBI MOTION's unique 40°angular contact design which enables the Ball spline delivers high sensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibration, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball spline provides ten times loading capacity than the linear bush on the like model but with a compact profile. Namely, Durability and reliablility is the reason to choose TBI Ball spline in your application.

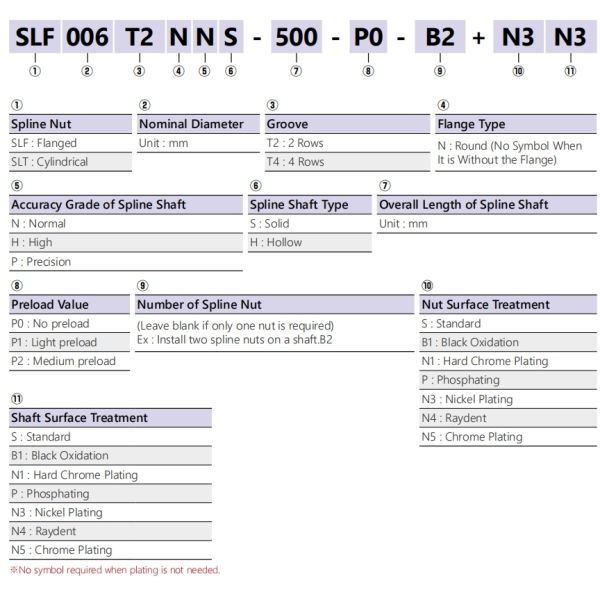

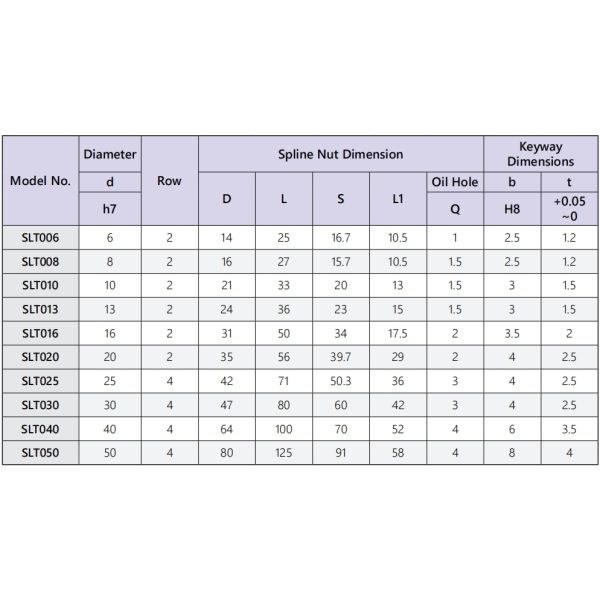

③Model Number of ball screw series

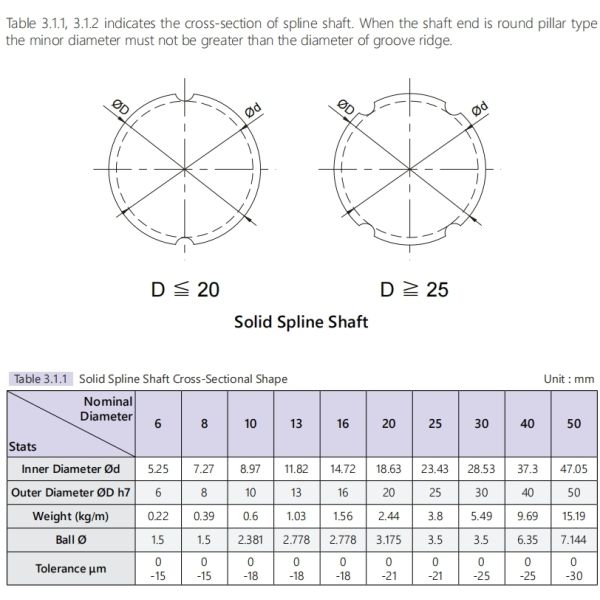

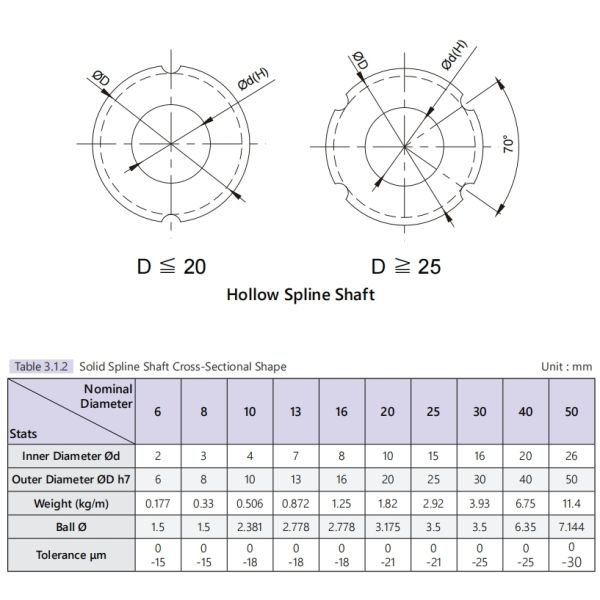

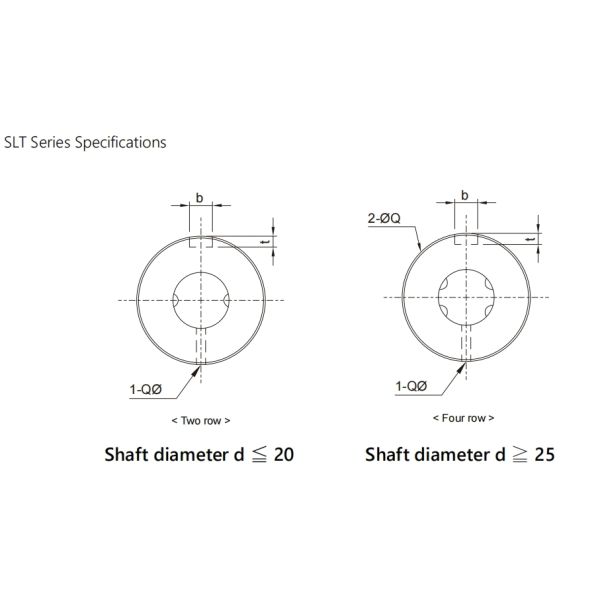

④SLF,SLT Spline Shaft Cross-Sectional Shape

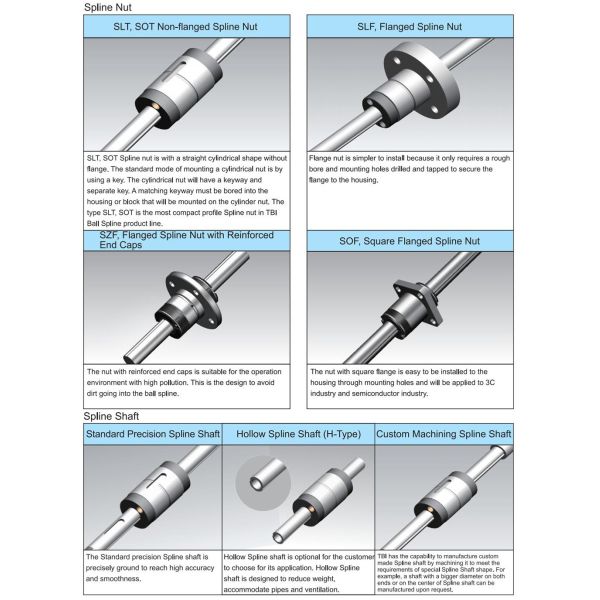

⑤All type of TBI MOTION Ball Spline

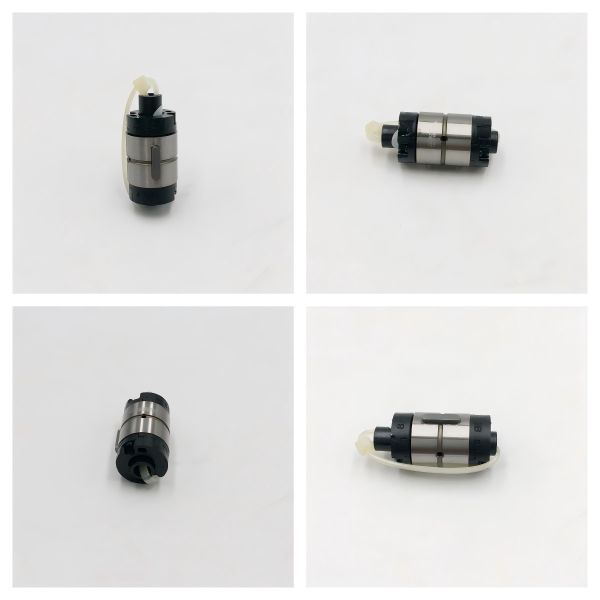

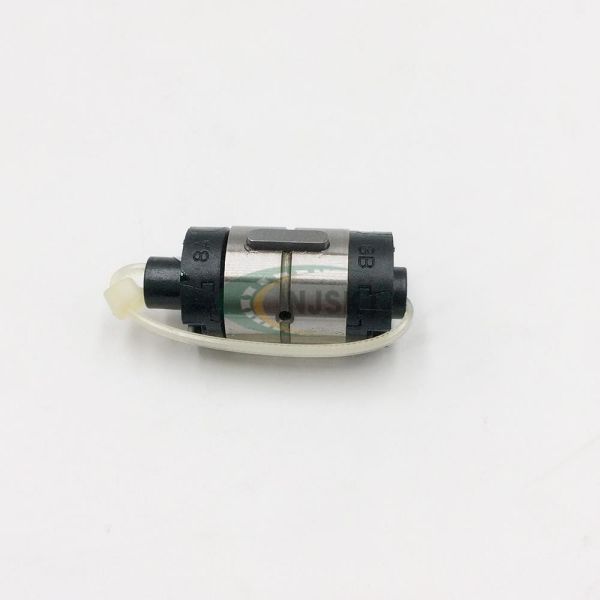

④Actual product photo
