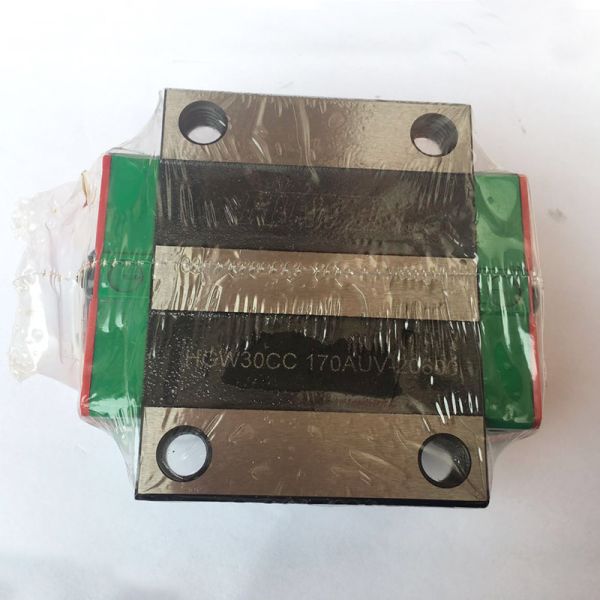

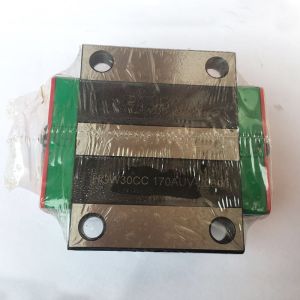

①HIWIN HGW30HC Linear Guideway Block ZA Preload Guide Bearing
Engineered to excel in the dynamic world of precision turning, the HIWIN HGW30HC Linear Guideway with ZA Preload redefines motion control for next-generation lathes. This advanced guide bearing system incorporates HIWIN's specialized knowledge of rotational machining to deliver unmatched stability for complex turning operations, from delicate finishing to heavy interrupted cuts.
The HGW30HC features HIWIN's innovative rotational harmonics dampening technology, specifically developed to neutralize the unique vibration patterns generated in lathe applications. Its precision preload system maintains consistent bearing contact pressure, eliminating play while adapting to varying radial forces during facing and taper turning operations.
Designed for sliding bed and precision tool-room lathes, this guideway incorporates HIWIN's swarf-deflecting labyrinth seals, which actively redirect chips away from critical surfaces while maintaining optimal lubrication. The hardened contact surfaces utilize a directional wear-resistant matrix that outperforms in the abrasive environment of continuous turning.
Trusted by premium lathe manufacturers, the HGW30HC with ZA preload represents HIWIN's dedication to turning technology – where circular precision meets linear motion excellence for superior surface finishes and dimensional accuracy.
②Drawing of HGW30HC
③Model Number of HG Series
④Construction of HG Series
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
