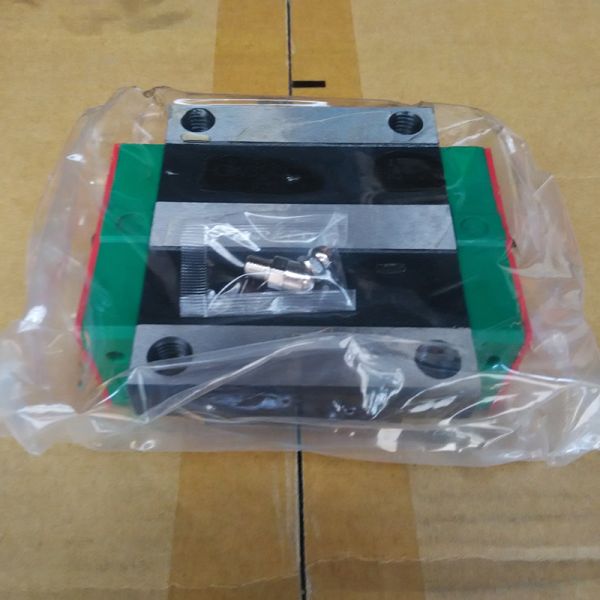

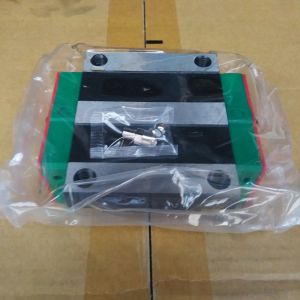

①HIWIN HGW55CA Linear Guideway Block 55mm Guide Block For Machines
Forged in HIWIN's precision workshops in Taiwan, the HGW55CA 55mm Guide Block redefines motion control for heavy-duty machining centers tackling today's most challenging workpieces. This robust linear solution embodies HIWIN's deep understanding of metalcutting dynamics, delivering vibration-free guidance for high-power milling, turning, and multi-axis machining applications.
The HGW55CA introduces HIWIN's active damping architecture, a proprietary system that neutralizes harmonic vibrations during interrupted cuts and difficult-to-machine materials. Its monolithic bearing design features pressure-optimized recirculation paths that maintain buttery motion under extreme side loads from complex contouring operations. The guideway's thermal symmetry engineering ensures uniform expansion characteristics, critical for maintaining tight tolerances during prolonged machining of large-scale components.
Specifically configured for horizontal boring mills and large-format machining centers, this guide block incorporates HIWIN's chip vortex defense system, where specially engineered wipers and lubricant channels create a protective barrier against swarf intrusion. The hardened contact surfaces employ HIWIN's proprietary micro-texturing technology to enhance lubricant retention during heavy roughing cycles.

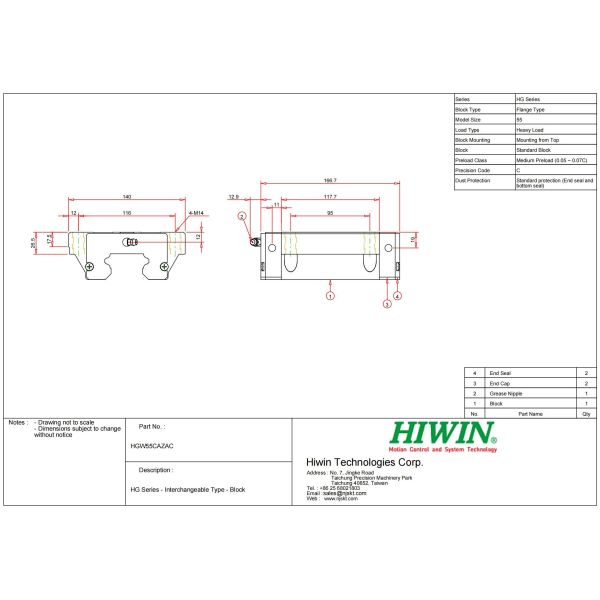

②Drawing of HGW55CA
③Model Number of HG Series
④Construction of HG Series
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
