HIWIN HGW15CC Linear Guideway 15mm Heavy Load Linear Motion Stage

Name: HIWIN HGW15CC Linear Guideway 15mm Heavy Load Linear Motion Stage
Brand: HIWIN
Price: 1 USD

Cheap HIWIN HGW15CC Linear Guideway 15mm Heavy Load Linear Motion Stage for sale

Brand Name : HIWIN

Model Number : HGW15CC

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : HG

Model Size(mm) : 15 mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 4000mm

Preload Class : Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material : SNCM220 Carbon Steel

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : NC lathe, EDM, measuring equipment

Smoothness : Smooth

Contact Now

①HIWIN HGW15CC Linear Guideway 15mm Heavy Load Linear Motion Stage

As a proud product of HIWIN's world-class manufacturing in Taiwan, the HGW15CC 15mm Linear Guideway sets new standards for heavy-load precision in compact motion systems. This industrial-grade linear stage combines HIWIN's decades of engineering excellence with cutting-edge motion technology to deliver uncompromising performance in space-constrained automation applications.

The HGW15CC features HIWIN's proprietary high-capacity bearing technology, ensuring smooth operation under substantial loads while maintaining exceptional positioning accuracy. Its reinforced construction incorporates HIWIN's advanced load distribution system, providing outstanding rigidity and vibration damping characteristics. The guideway's precision components and optimized design reflect HIWIN's unwavering commitment to quality and durability.Engineered for semiconductor equipment, precision automation, and industrial robotics, this compact heavy-load solution showcases HIWIN's innovation in miniature motion control. The thermal-stable performance and contamination-resistant sealing demonstrate HIWIN's holistic approach to reliability, trusted by manufacturers across high-tech industries.With HIWIN's global technical support network, the HGW15CC delivers the perfect balance of compact design and robust performance that professionals expect from the world's leading motion control brand.

②Drawing of HGW15CC

③Model Number of HG Series

④Construction of HG Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.

⑤Features of HG series
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy
installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

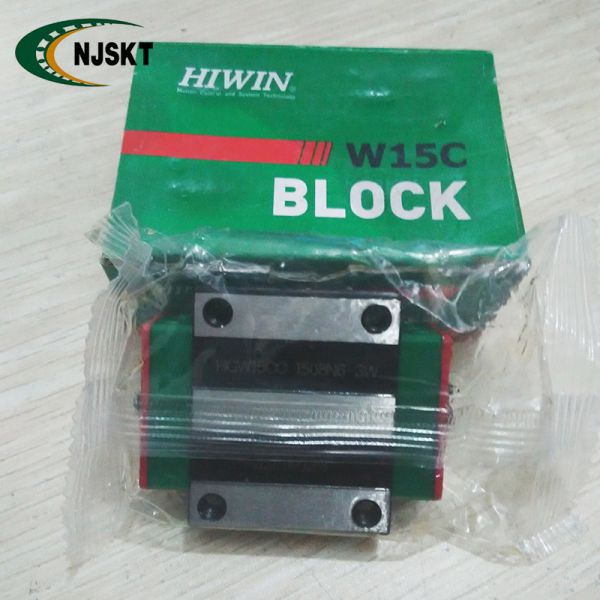

⑥Actual product photo

HIWIN HGW15CC Linear Guideway 15mm Heavy Load Linear Motion Stage

⑦Measurement drawing

⑧HIWIN series
