Brand Name : HIWIN
Model Number : HGH45HA
Certification : DE1924083895474
Place of Origin : CHINA TAIWAN
MOQ : 1
Price : 1-100 USD
Payment Terms : T/T,L/C,D/A,D/P,Western Union
Supply Ability : 100000 pcs / per month
Delivery Time : 1-7 work days
Packaging Details : Small or with carton box, Bulk order with Wooden box
Series : HG
Model Size(mm) : 45 mm
No. of Blocks per Rail : 1
Rail Mounting Type : R- Mounting From Top
Rail Length(mm) : Max 4000mm, Butt-joint available
Preload Class : Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload
Material : SNCM220 Carbon Steel
Dust Protection : SS-standard
Y -Symmetrical (E1=E2) First hole dimension : Y= Symmetrical (E1=E2)
Installation : Easy
Application : NC lathe, EDM, measuring equipment
Smoothness : Smooth
As a proud product of HIWIN's world-class manufacturing in Taiwan, the HGH45HA HG Type Linear Guideway represents the pinnacle of precision motion technology for demanding industrial applications. This premium linear ball bearing solution embodies HIWIN's decades of engineering expertise, delivering unmatched reliability and performance in heavy-duty automation environments.The HGH45HA incorporates HIWIN's proprietary high-capacity ball recirculation system, ensuring buttery-smooth linear motion perfect for precision machinery. Its robust construction features HIWIN's signature multi-directional load technology, providing exceptional stability and vibration damping characteristics. The guideway's precision-ground surfaces and optimized preload design maintain HIWIN's legendary quality standards.
Engineered for CNC equipment, industrial automation systems, and large-format machinery, this HG-type guideway showcases HIWIN's commitment to durability. The thermal-stable performance and advanced sealing solutions reflect HIWIN's holistic approach to motion control, trusted by manufacturers worldwide.With HIWIN's global technical support network, the HGH45HA delivers the perfect combination of strength and precision that professionals expect from the industry's most respected motion control brand.

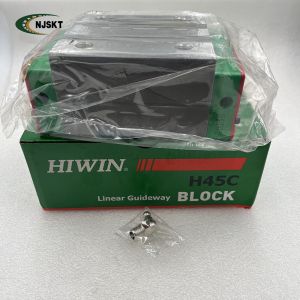

⑥Actual product photo





|
|

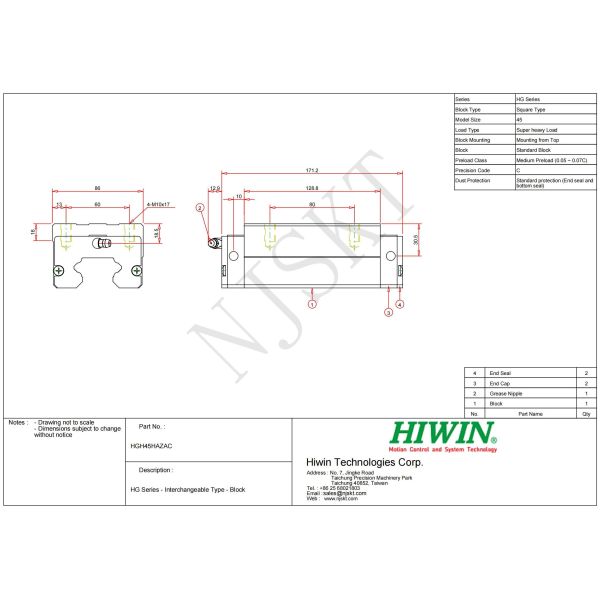

HIWIN HGH45HA Linear Guideway Block HG Type Linear Ball Bearing Images |
