Brand Name : HIWIN
Model Number : RGH20HA
Certification : DE1924083895474
Place of Origin : CHINA TAIWAN
MOQ : 10
Price : 1-100 USD
Payment Terms : T/T,L/C,D/A,D/P,Western Union
Supply Ability : 100000 pcs / per month
Delivery Time : 1-7 work days
Packaging Details : Small or with carton box, Bulk order with Wooden box
Series : RG
Model Size(mm) : 20 mm
No. of Blocks per Rail : 1
Rail Mounting Type : R- Mounting From Top
Rail Length(mm) : Max 4000mm
Preload Class : Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload
Material : SNCM220 Carbon Steel
Dust Protection : SS-standard
Y -Symmetrical (E1=E2) First hole dimension : Y= Symmetrical (E1=E2)
Installation : Easy
Application : Automation Systems, Transportation equipment, CNC machining centers, Heavy duty cutting machines
Smoothness : Smooth
The HIWIN RGH20HA Linear Guideway Block redefines heavy-duty linear motion with its advanced roller bearing technology, delivering exceptional load capacity and vibration resistance for the most demanding industrial applications. Engineered for ultra-high rigidity applications, this roller-type guideway system features an optimized four-row roller arrangement that provides superior moment load resistance compared to conventional linear guides, making it particularly suitable for large-scale machine tools, heavy CNC equipment, and precision automation systems handling extreme cutting forces. The RGH20HA's hardened and precision-ground raceways work in tandem with oversized cylindrical rollers to achieve unmatched stiffness while maintaining smooth motion characteristics - even under maximum load conditions. Its innovative bearing geometry distributes stresses evenly across contact surfaces, significantly extending service life in continuous operation environments such as aerospace component manufacturing or automotive production lines. The guideway block incorporates HIWIN's advanced sealing system with triple-layer wipers and grease retention features that effectively exclude contaminants while maintaining optimal lubrication, crucial for maintaining precision in harsh machining environments with heavy chip loads and coolant exposure. With its oversized flange dimensions and reinforced housing structure, the RGH20HA demonstrates exceptional resistance to deflection during high-power machining operations, ensuring consistent accuracy when processing large workpieces. The system's adjustable preload mechanism allows fine-tuning for specific application requirements, from high-speed positioning to ultra-precise finishing operations. Whether integrated into gantry milling machines, heavy boring equipment, or precision grinding systems, the HIWIN RGH20HA Linear Roller Guide Bearing System delivers uncompromising performance where conventional linear guides would fail, combining the benefits of extreme load capacity with the precision and smooth operation demanded by today's most challenging industrial applications.

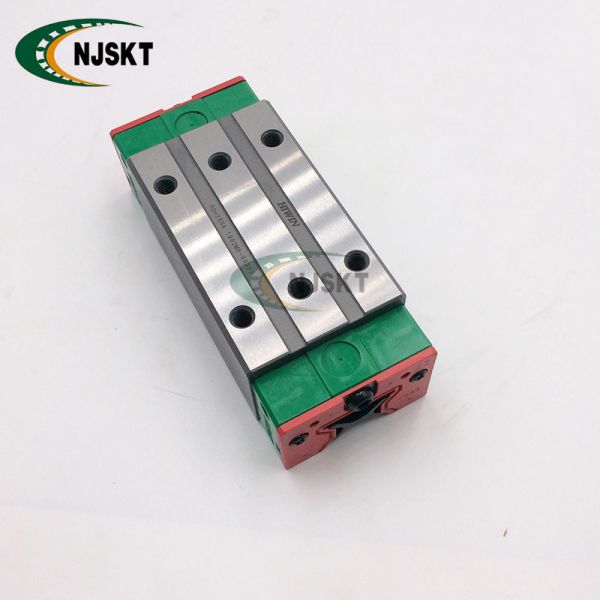

⑥Actual product photo





|
|
RGH20HA Carbon Steel Hiwin Bearing Block Linear Guide Carriage Images |
