MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm

Brand Name : HIMIN

Model Number : MGW9C

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : MGW-Enlarged width type

Model Size(mm) : 9mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 1200mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : Std- Carbon Steel , M- Stainless Steel

Dust Protection : SS-standard

Y -Symmetrical (E1=E2) First hole dimension : Y= Symmetrical (E1=E2)

Installation : Easy

Application : CNC Machines, 3D printer

Smoothness : Smooth

Contact Now

①MGW9C HIWIN Miniature Linear Guideway 9mm Linear Guide Rail Robot Arm

Designed specifically for robotic arm applications, the HIWIN MGW9C 9mm Miniature Linear Guideway delivers exceptional precision and smooth motion in compact robotic systems. This premium guideway excels in articulated joints and end-effector mechanisms where space constraints meet high-performance demands.

The MGW9C incorporates HIWIN's advanced motion technology to ensure flawless articulation and repeatable positioning - critical for pick-and-place operations, assembly tasks, and sensitive material handling. Its optimized design provides the perfect balance of rigidity and lightweight construction for dynamic robotic movements while maintaining exceptional durability through millions of cycles.

Engineered with robotic applications in mind, this guideway features specialized seals to protect against industrial contaminants and a low-profile design that maximizes workspace efficiency. The smooth, vibration-free operation enhances robotic precision while reducing wear on adjacent components.

Trusted by robotic manufacturers worldwide, the MGW9C represents HIWIN's commitment to innovation in automation technology. From collaborative robots to high-speed industrial arms.

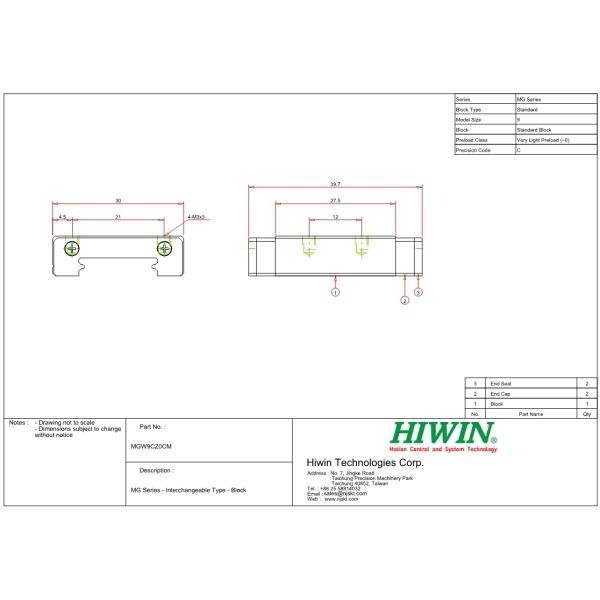

②Drawing of MGW9C
MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm
③Model Number of MG Series
MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm

Note:

  • The bottom seal is available for MGN & MGW 9, 12,14.15.
  • MG5 is only supplied with outer recirculation module.
④Construction of MGW Series
MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm
  1. Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
  2. Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
  3. MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
  4. Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).
⑤Features
  • Tiny and light weight, suitable for miniature equipment.
  • Gothic arch contact design can sustain loads from all directions and offer highrigidity and high accuracy
  • Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the blocks are removed from the rail.
  • Interchangeable types are available in certain precision grades.
  • Block: we offers two types of linear guideways, flange and square types
  • Rail: we offers standard top mounting type
⑥Specifications
Model No. Block length(mm) Preload classes Bolt size Weight(kg)
MGW7C 31.2 Z0/ZF/Z1 4-M3x3 0.02
MGW7H 41 Z0/ZF/Z1 4-M3x3 0.029
MGW9C 39.3 Z0/ZF/Z1 4-M3x3 0.04
MGW9H 50.7 Z0/ZF/Z1 4-M3x3 0.057
MGW12C 46.1 Z0/ZF/Z1 4-M3x3.6 0.071
MGW12H 60.4 Z0/ZF/Z1 4-M3x3.6 0.103
MGW15C 54.8 Z0/ZF/Z1 4-M4x4.2 0.143
MGW15H 73.8 Z0/ZF/Z1 4-M4x4.2 0.215
⑦Measurement drawing

MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm

⑧Product Overview
MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm
⑨HIWIN series
MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm
⑩Top Product Recommendation
MGW9C Hiwin Linear Slide Linear Guideways Hiwin 9mm Size For Robot Arm
