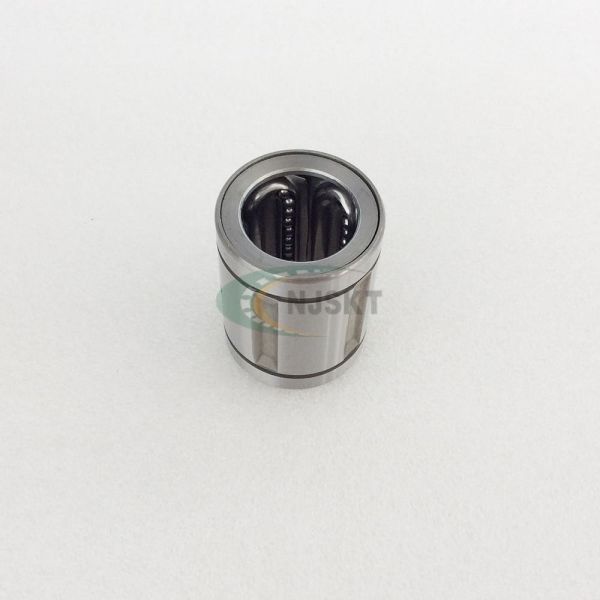

SDM12GA Linear Bearing 12mm Shaft Diameter Linear Rail Bearing

The SDM12GA Linear Rail Bearing delivers robust performance for 12mm shaft systems through its precision-engineered steel construction, offering unmatched durability in demanding motion applications. This bearing's high-grade steel composition provides exceptional resistance to wear and deformation, ensuring reliable operation even under substantial loads and continuous use. The material's inherent strength maintains precise alignment with mating components while effectively dampening vibrations that could compromise system accuracy. Steel's natural rigidity prevents deflection in high-stress scenarios, making this bearing particularly suitable for industrial automation, CNC machinery, and material handling equipment where consistent performance is paramount. The precision-ground interior surface promotes smooth linear motion while the steel's hardness protects against premature wear, extending service life in rigorous operating conditions. This construction excels in environments where shock resistance and long-term dimensional stability are critical, outperforming alternative materials in heavy-duty applications. The bearing's thermal properties help maintain consistent performance across temperature variations, while its corrosion-resistant treatment preserves functionality in challenging industrial settings. Designed for seamless integration with 12mm rail systems, this steel linear bearing combines traditional material advantages with modern precision engineering. Its balanced combination of load capacity, durability, and smooth operation makes it an ideal choice for engineers seeking reliable motion control solutions where steel's inherent strength and longevity provide measurable advantages over other materials in demanding 12mm shaft applications.

② Features of linear bearings

1.The linear ball bearing comprises an outer race, a retainer, balls, and end rings. The retainer, housed within the outer race, features three or more rows of elliptical ball tracks that enable continuous ball circulation with minimal friction. The end rings secure the retainer at both ends of the outer race.

2.One side of the parallel straight sections of the elliptical ball tracks is open, allowing the balls to contact the shaft surface. This design permits unlimited back-and-forth ball movement along the tracks in response to the shaft’s linear reciprocating motion. Consequently, the retainer not only guides the rolling motion but also prevents ball displacement when the bearing is disengaged from the shaft.
