HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size

Brand Name : HIWIN

Model Number : RGW65HC

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : RG

Model Size(mm) : 65mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 4000mm

Preload Class : Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material : SNCM220 Carbon Steel

Dust Protection : SS-standard

Y -Symmetrical (E1=E2) First hole dimension : Y= Symmetrical (E1=E2)

Installation : Easy

Application : Automation Systems, Transportation equipment, CNC machining centers, Heavy duty cutting machines

Smoothness : Smooth

Contact Now

①HIWIN RGW65HC Linear Guideway Linear Rail Actuator Module System

The HIWIN RGW65HC Linear Guideway System represents a cutting-edge motion solution engineered for high-performance industrial automation, delivering the precision and durability required for next-generation automated manufacturing systems. This complete linear actuator module combines robust construction with refined motion characteristics to support demanding applications in robotic workcells, automated assembly lines, and precision material handling equipment. The system's advanced roller technology ensures smooth, vibration-free movement even during high-speed positioning tasks, maintaining micron-level accuracy in critical processes such as electronic component assembly, automated inspection stations, and precision packaging operations. Designed for seamless integration into smart factory environments, the RGW65HC features intelligent sealing solutions that protect internal components from industrial contaminants while supporting the implementation of predictive maintenance protocols. Its thermal-stable design maintains consistent performance across varying operating conditions, ensuring reliability in diverse automation applications from cleanroom manufacturing to heavy industrial settings. The guideway's modular architecture allows for flexible configuration in custom automation solutions, while its compatibility with IoT-enabled monitoring platforms provides the foundation for data-driven manufacturing. Whether deployed in automotive production systems, pharmaceutical packaging lines, or semiconductor handling equipment, this linear motion solution delivers the uncompromising performance required to maximize throughput in 24/7 automated operations. By combining industrial-grade durability with precision movement characteristics, the HIWIN RGW65HC exemplifies the company's commitment to developing automation components that push the boundaries of smart manufacturing while maintaining the reliability expected from a global leader in motion control technology.

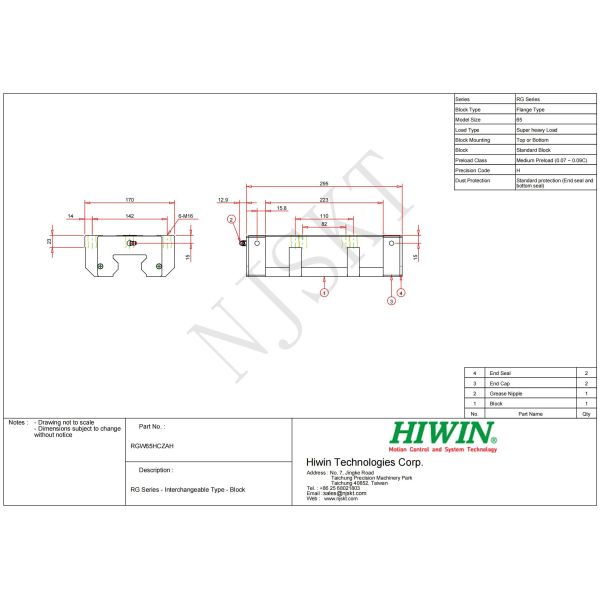

②Drawing of RGW65HC
HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size
③Model Number of RG Series
HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size
④Construction of RG Series
HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size
1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

⑥Actual product photo

HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size

⑦Measurement drawing
HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size
HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size
HIWIN series
HIWIN RGW65HC Linear Guide Rail Actuator Module System 65mm Size
