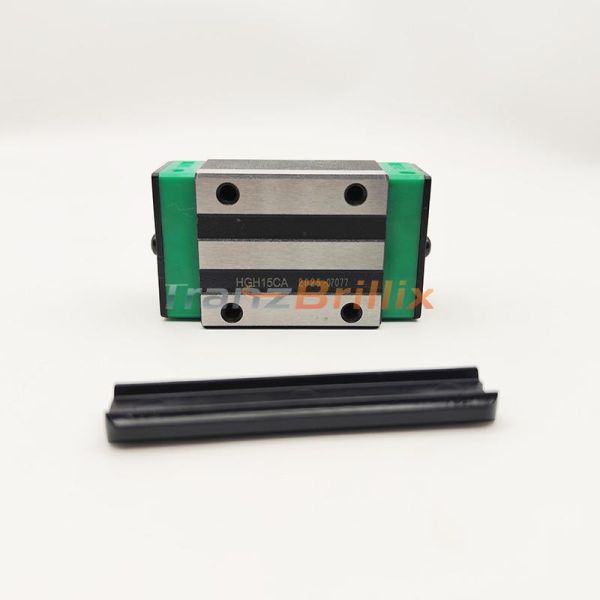

CNC Linear Guide Rail Set 15mm (High Rigidity) | Fits HGH15CA Series

Brand Name : TranzBrillix

Model Number : HGH15CA

Certification : DE1924083895474

Place of Origin : CHINA

MOQ : 10

Price : 2.07-4 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : Heavy load type HG

Model Size(mm) : 15mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 4000mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : SNCM420

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : Ideal for CNC, lathes, and automation.

Smoothness : Smooth

Contact Now

Compatible Replacement for HIWIN HGH15CA

This 15mm linear guide block is engineered as a 100% interchangeable alternative to the HIWIN HGH15CA. It matches the original datasheet specifications for dimensions, load ratings (11.38 kN), and stiffness, making it an ideal cost-effective solution for 3D printers, light automation, and desktop CNC routers.

Engineering Data / Performance Specs

Dimensions and load ratings comply with ISO standard series for Size 15.

CNC Linear Guide Rail Set 15mm (High Rigidity) | Fits HGH15CA Series

Dimensional & Mechanical Data
Model Number HGH15CA (Square Type / Heavy Load)
Nominal Rail Width (W) 15 mm
Basic Dynamic Load Rating (C) 11.38 kN
Basic Static Load Rating (C0) 16.97 kN
Static Moment (MR) 0.15 kN-m
Static Moment (MP / MY) 0.08 kN-m
Mounting Bolt Size M4 x 16

Structure & Features

CNC Linear Guide Rail Set 15mm (High Rigidity) | Fits HGH15CA Series

  • 4-Row Circular Arc Design: Features a 45° contact angle design that ensures equal load capacity in all four directions (radial, reverse radial, and lateral). This provides superior stability for compact X/Y axis builds.
  • Material Standard: Block body and balls are manufactured using GCr15 Bearing Steel, hardened to HRC 60-62 for wear resistance.

  • CNC Linear Guide Rail Set 15mm (High Rigidity) | Fits HGH15CA Series

Lubrication Guide

⚠️ Critical: Blocks are shipped with anti-rust oil, NOT lubricant. You must grease them before use.

  • Grease Type: Lithium Soap-based Grease (NLGI No.2).
  • Initial Fill Amount: Approx. 1 cm³ per block (Fill slowly until grease overflows slightly).
  • Refill Interval: Every 100km of travel distance, or every 3-6 months depending on operating speed.
  • Method: Inject via the supplied M4 grease nipple.

Installation & Mounting

  • Surface Prep: Ensure the mounting surface is flat. Rough surfaces will reduce accuracy and lifespan.
  • Datum Plane: Press the block reference edge firmly against the mounting shoulder before tightening.
  • Torque Sequence: Tighten the 4 bolts (M4) diagonally (X-pattern) in 2-3 stages. Do not fully tighten one bolt at a time.

Accuracy & Preload Class

Accuracy Options:
  • C (Normal): +/- 0.1mm (Standard Stock)
  • H (High): +/- 0.03mm (Recommended for Precision)
Preload Options:
  • Z0 (Light): Best for 3D printers & light automation.
  • ZA (Medium): Recommended for small CNC routers.

Packaging

Included in Box: 1x HGH15CA Linear Block, 1x Grease Nipple (M4).
Protection: Vacuum sealed in anti-rust bag, individually boxed.

*Disclaimer: HIWIN® is a registered trademark of HIWIN Technologies Corp. This product is an aftermarket replacement part manufactured by YourBrand and is not affiliated with HIWIN. All technical data is provided for compatibility reference.
