CNC Linear Guide Rail Set 20mm (High Rigidity) | Fits HGH20CA Series

Name: CNC Linear Guide Rail Set 20mm High Rigidity Fits HGH20CA Series
Brand: TranzBrillix
Price: 2.1 USD

Cheap CNC Linear Guide Rail Set 20mm (High Rigidity) | Fits HGH20CA Series for sale

Brand Name : TranzBrillix

Model Number : HGH20CA

Certification : DE1924083895474

Place of Origin : CHINA

MOQ : 10

Price : 2.1-4 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : Heavy load type HG

Model Size(mm) : 20mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 4000mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : SNCM420

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : Ideal for CNC, lathes, and automation.

Smoothness : Smooth

Contact Now

Compatible Replacement for HIWIN HGH20CA

This 20mm linear guide block is engineered as a 100% interchangeable alternative to the HIWIN HGH20CA. It matches the original datasheet specifications for dimensions, load ratings (17.75 kN), and stiffness, making it an ideal cost-effective solution for CNC routers, pick & place machines, and linear stages.

Engineering Data / Performance Specs

Dimensions and load ratings comply with ISO standard series for Size 20.

CNC Linear Guide Rail Set 20mm (High Rigidity) | Fits HGH20CA Series

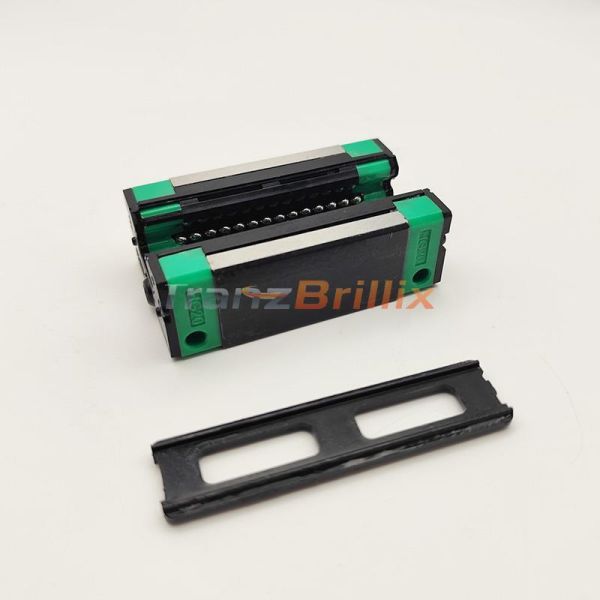

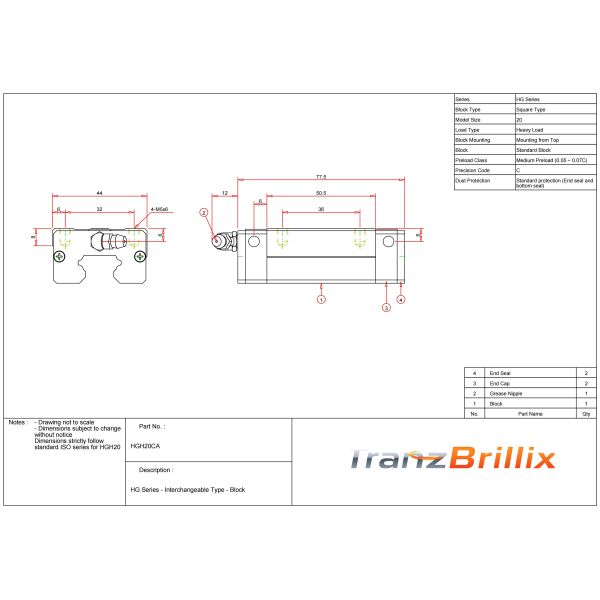

Dimensional & Mechanical Data
Model Number	HGH20CA (Square Type / Heavy Load)
Nominal Rail Width (W)	20 mm
Basic Dynamic Load Rating (C)	17.75 kN
Basic Static Load Rating (C0)	27.76 kN
Static Moment (MR)	0.38 kN-m
Static Moment (MP / MY)	0.23 kN-m
Mounting Bolt Size	M5 x 16

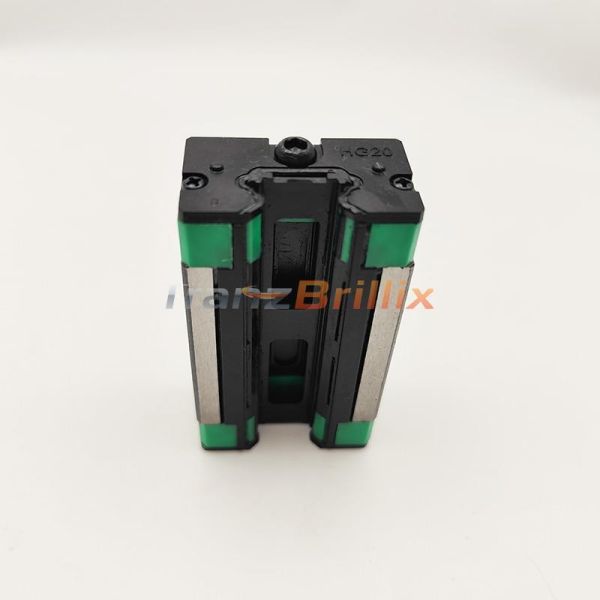

Structure & Features

4-Row Circular Arc Design: Features a 45° contact angle design that ensures equal load capacity in all four directions (radial, reverse radial, and lateral). This is critical for maintaining accuracy under complex loads.
Material Standard: Block body and balls are manufactured using GCr15 Bearing Steel, hardened to HRC 60-62 for excellent wear resistance.

Lubrication Guide

⚠️ Critical: Blocks are shipped with anti-rust oil, NOT lubricant. You must grease them before use.

Grease Type: Lithium Soap-based Grease (NLGI No.2).
Initial Fill Amount: Approx. 2 cm³ per block (Fill slowly until grease overflows slightly).
Refill Interval: Every 100km of travel distance, or every 3-6 months depending on operating speed.
Method: Inject via the supplied M5 grease nipple.

Installation & Mounting

Surface Prep: Ensure the mounting surface is flat. Rough surfaces will reduce accuracy and lifespan.
Datum Plane: Press the block reference edge firmly against the mounting shoulder before tightening.
Torque Sequence: Tighten the 4 bolts (M5) diagonally (X-pattern) in 2-3 stages. Do not fully tighten one bolt at a time.

Accuracy & Preload Class

Accuracy Options:

C (Normal): +/- 0.1mm (Standard Stock)
H (High): +/- 0.03mm (Recommended for Precision)

Preload Options:

Z0 (Light): Smooth motion for automation.
ZA (Medium): Recommended for CNC routers.

Packaging

Included in Box: 1x HGH20CA Linear Block, 1x Grease Nipple (M5).
Protection: Vacuum sealed in anti-rust bag, individually boxed.

*Disclaimer: HIWIN® is a registered trademark of HIWIN Technologies Corp. This product is an aftermarket replacement part manufactured by YourBrand and is not affiliated with HIWIN. All technical data is provided for compatibility reference.
