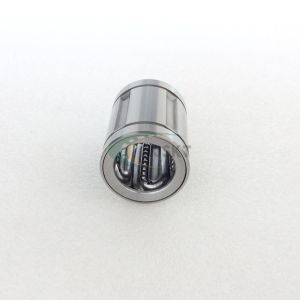

SDM120GA Round Linear Bearings 120mm Shaft Diameter High Durability Easy Installation

The SDM120GA Linear Bearing redefines heavy-duty performance for 120mm motion systems through its innovative steel construction, engineered to meet the extreme demands of industrial-scale 3D printing and large-format manufacturing. This bearing utilizes high-performance steel to deliver unmatched structural integrity, capable of supporting massive print beds and heavy extrusion systems while maintaining micron-level precision across expansive build volumes. The steel material provides inherent advantages that are critical for such large-scale applications – exceptional resistance to deformation under substantial loads, superior vibration damping for print quality preservation, and unparalleled wear resistance for extended service life in continuous operation. Precision machining ensures smooth linear motion while maintaining steel's load-bearing capacity in these oversized shaft applications. The material's thermal stability prevents performance variations during marathon printing sessions, maintaining dimensional accuracy regardless of environmental conditions. Particularly valuable in industrial additive manufacturing systems where both scale and precision matter, this steel bearing demonstrates how traditional material strengths can be optimized for next-generation large-format 3D printing requirements. Engineers rely on this solution when building machinery where conventional materials would fail, proving steel remains indispensable for pushing the boundaries of industrial-scale additive manufacturing. The robust construction ensures reliable performance through millions of cycles, making it ideal for production environments where equipment failure would result in significant operational disruptions, while still meeting the exacting precision requirements of advanced manufacturing technology.

② Features of linear bearings

1.The linear ball bearing comprises an outer race, a retainer, balls, and end rings. The retainer, housed within the outer race, features three or more rows of elliptical ball tracks that enable continuous ball circulation with minimal friction. The end rings secure the retainer at both ends of the outer race.

2.One side of the parallel straight sections of the elliptical ball tracks is open, allowing the balls to contact the shaft surface. This design permits unlimited back-and-forth ball movement along the tracks in response to the shaft’s linear reciprocating motion. Consequently, the retainer not only guides the rolling motion but also prevents ball displacement when the bearing is disengaged from the shaft.
